El envolver trenzado del cable del ANIMAL DOMÉSTICO ignífugo de 6m m 10m m

El envolver trenzado del cable del ANIMAL DOMÉSTICO ignífugo de 6m m 10m m

El envolver trenzado del cable del ANIMAL DOMÉSTICO ignífugo de 6m m 10m m

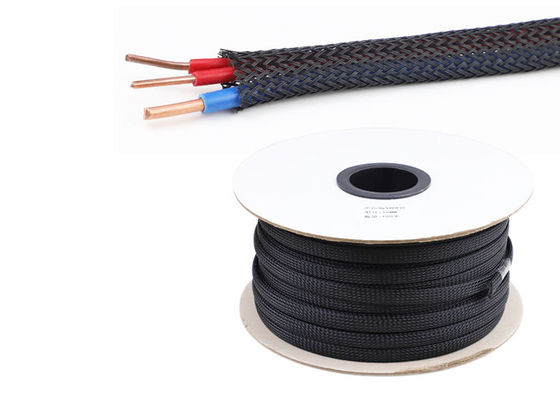

Flame Resistant 6mm 10mm PET Braided Cable Sleeving
El envolver trenzado del cable del ANIMAL DOMÉSTICO ignífugo de 6m m 10m m
Datos del producto:
Lugar de origen: Shenzhen de China
Nombre de la marca: Huiyunhai
Certificación: UL, RoHS, REACH
Número de modelo: HYH
Pago y Envío Términos:
Cantidad de orden mínima: Negociable
Precio: Negotiable
Detalles de empaquetado: cartón estándar de la exportación
Capacidad de la fuente: 500.000 metros por mes
Contacto
Descripción detallada del producto
Nombre: El envolver trenzado cable del animal doméstico Color: travesía roja y negra
Función: Protección del alambre Plazo de ejecución: 5 días
Característica: Ignífugo Muestra: libre
Alta luz:

el animal doméstico de 10m m trenzó envolver

,

el envolver extensible del cable de 6m m

6mm/ 10mm PET Automotive Black Braided Sleeve For Wire Harness





Features of PET Braided Expandable Cable Sleeve For Wire Cable


Materia l: PET
Diameter: custom
Length: custom
Expanding Ratio: 200%
Color: colorful
Melting point: 230 °C ± 5
Tinting strength: 100 ± 5 °C
Flame Retardant: yes

Flammability class: UL94VO/VW-1/V2.
Temperature endurance: -50 °C~ +150 °C
PET sleeve quality: UL,SGS,Rohs,Reach,etc.



PET Expandable Tube is braided from polyethylene terepthalate (PET) monofilament yarns. The material has a wide operating temperature range, is resistant to chemical degradation, UV radiation, and abrasion. The sleeving cuts easily and cleanly with a hot knife and once installed, will beautify and protect any wire, hose or cable application.



Widely used in HDMI, DVI cable, wire and cable, computer cable, computer peripheral line, computer case wire, cable, audio video line, network line jumper wire, coaxial cable, broom, platoon line, AV line, automotive wiring harness, dc lines, lighting, air conditioners, refrigerators, washing machines, household appliances and fiber optic cable, motorcycles, cars, high-speed rail, trains, planes, large machinery line maintenance and beautification effect.





Premium Cable Management:Crafted with durable & flexible neoprene, not easy to deform, dustproof, waterproof , breathable and washable. Protect multiple cables without tearing while protecting cords from foot traffic & chewing pets.



Polyester expandable sleeving is flame-retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial applications. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors. Totally expanded the sleeving can reach at least 1.5 times the initial dimension.





Product feacture of PET Braided Expandable Cable Sleeve For Wire Cable



The braided sleeve is made of environmentally-friendly PET silk, which has good flexibility, flame retardancy, wear resistance and heat insulation. The product has a smooth surface, bright color and a variety of patterns. Products are widely used in computer power lines, audio and video lines, automotive, aviation, wire and cable industries, to protect and beautify.


1. Light weight & Flexible & Insulation & UV Resistant & Decoration & Flame-retardant & Durable abrasion resistance & Resistant to chemical degradation, in a wide range of industrial applications.
2. Braided of 0.25mm / 0.2mm Pet monofilament.
3. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors.
4. Totally expanded the sleeving can reach at least one point five times than the initial dimension.
5. Logo printing is available.
6. Customized,Special package is willing to accepted,can be product according to customers requirements.





Dimensions of PET Braided Expandable Cable Sleeve For Wire Cable



El envolver trenzado del cable del ANIMAL DOMÉSTICO ignífugo de 6m m 10m m 0



Notes of cable sleeve



1.  Nominal size indicates the flat width.

2.  The part No. will be followed with BK, GR and so on to indicate the color of sleeving.

3.  This sleeving has expandable character, the following sizes are covered by the nearest:16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.

4.  Special packing, sizes, and colors can be supplied upon request.

5.  All numerical data are average or typical values, not including customized sizes.















El envolver trenzado del cable del ANIMAL DOMÉSTICO ignífugo de 6m m 10m m 1





























El envolver trenzado del cable del ANIMAL DOMÉSTICO ignífugo de 6m m 10m m 2
